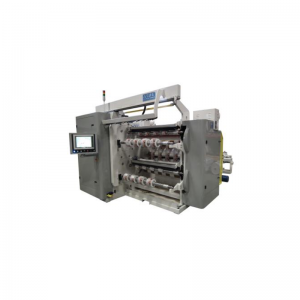

The Sapphire S2T is the choice for the converter that is looking for maximum productivity and minimum downtime. This is achieved by the machine continuing to run, whilst the operator (or machine) takes off the finished rolls and puts new cores onto the rewind shaft.
The cycle time of the Sapphire S2T can be as low as 15 seconds and will automatically cut the web (at set length), and apply the new incoming web onto new cores.
Once again, the Sapphire S2T utilises our vacuum roller technology, and most options for minimising job setups can be added to the machine to increase productivity further. It also features a unique shaft support system (for larger rewind diameters) where the rewind shafts remain fully supported through the turreting sequence.
Able to handle a wide range of Films, Laminates, Foils, Non-wovens and Paper
Full shaftless unwind with electric reel lift
Features:
Maximum speed 800m/min for optimum productivity
Easy to assemble and maintain, with built in electrical panel, pneumatics, operator panel and remote diagnostic capabilities
Automatic web cut off saves on downtime
Vacuum pull roller for perfect tension isolation which avoids slips or scratches even in sensitive materials
All electrical operation makes it the hygienic choice
Handles multiple widths of PP, PE, PET, paper and more
Core positioning for fast, accurate, easy set up even while machine is running
Automatic offload pushes finished rolls onto unloading device to save time
Unique turret support ensures minimum shaft deflection
Intuitive touch screen with job memory storage
ASHE digital edge guider
ASHE patented differential winding shafts
Guarding around the unwind to meet CE standards
Unloading stands available
Optional extra’s including laser core alignment, digital knife positioning, automatic knife positioning, driven unwind, splice table, static eliminators and various options for offloading and moving the finished reels
The redesigned DSI by Rotoflex is a versatile die cutting platform. The reduced footprint, enhanced accuracy and increased production speeds offer converters a more streamlined finishing workflow.
The flexible design fits a variety of inspection systems and allows the die cutting unit to be disengaged for specific jobs, meaning it may be run as a slitter/rewinder or die cutter, accommodating more applications and job types and making it the most efficient die cutting system available.
The Diamond model has been designed to be a compact, cost effective solution whilst keeping production requirements in mind. The machine has been based on our renowned Sapphire range of machines, and therefore has the flexibility to be able to slit and rewind most products at high speeds.
The machine is available in various configurations and all options within ASHE’s range are available to add onto the machine. The machine uses the ASHE vacuum roller technology and is hydraulic free, making it a total clean operation.
The machine is supplied in a ‘one piece’ configuration, therefore making shipping and installation easy.
The NWP is specifically designed to remove contamination from a moving web of material. The world’s top Flexo press producers already use this fully integrated contact-cleaning system. Available as a single- or double-side cleaner, this flexible system works for many applications and industries.
The NUVA2 UV curing system is the most effective UV technology for colour UV inkjet printing, as well as for high-speed coding, marking and serialisation. NUVA2 are fully air-cooled UV curing systems. They are available in widths of up to 250cm (100in).
RHINO embedded service technology continuously monitors the system, thus guarding against out-of-specification parameters that could result in an unplanned stoppage. GEW UV systems are engineered for operation in the most challenging conditions. They come with a 5-year warranty to avoid unexpected maintenance costs.
With NUVA2 UV curing, your machine runs faster for longer, with less energy and no downtime.
E2C systems are available with inert atmosphere curing. They can easily be upgraded to LED curing by using the same RHINO ArcLED electronic power supply.
Where alternative products exploit conventional curing technologies that often neglect energy monitoring, GEW state of the art UV systems implement advanced UV lamphead technology associated with the most energy efficient power supplies. E2C RHINO systems come with the additional benefit of a comprehensive 5-year warranty unique in its industry.
