Fife Pro-Trac 100 Electromechanical Sensor PositionerRead More
The Pro-Trac 100 is a low-cost, self-contained sensor positioner designed for standard-duty operations. Supplied with remote controller/digital readout, the Pro-Trac 100 is easily adapted to any process line for remote and/or centralized positioning capabilities.
This positioner uses an extruded aluminum body, providing a maximum overall length of approximately 1651 mm (65 inches). The Pro-Trac 100 is ideal for any edge guiding or center guiding application. Whether used as a completely self contained unit or added to an existing guide installation, various sensor mounting adaptors make virtually any orientation possible.
Fife Pro-Trac 200 Electromechanical Sensor PositionerRead More
The Pro-Trac 200 is a heavy-duty positioner engineered for continuous, reliable operation. Common application uses for the Pro-Trac 200 include chasing systems, moving-sensor center guide systems, web width measurement systems, or simple sensor positioning.
Adaptable to almost any application, the Pro-Trac 200 features a dust-tight design, with ball bearings in all moving parts for low friction and extended operating life. Optional self-tracking cable carriers eliminate the risk of damaged cables. Available primarily as an electromechanical positioner, the Pro-Trac 200 is also available in hydraulic configurations.
FIFE-500 Web Guiding SystemRead More
Introducing the FIFE-500 web guide for narrow web and nonwoven applications. This cost-effective guiding system is easy to use and install, while using new technology to help you improve efficiency. At the heart of the FIFE-500 is a color touch screen that’s operator friendly, featuring icons and text in 16 languages to simplify operation and reduce the time necessary for training.
FIFE-500 leverages the latest technology to improve performance and brushless motors to reduce maintenance. Faster core processing speeds mean that the FIFE-500 can adapt quickly to changes in the web, even at high line speeds.
Fife Symat 25 Offset Pivot GuideRead More
The Symat 25 is a compact, versatile electromechanical system engineered for narrow-web applications where short entry and exit spans are required. This offset pivot guide is available with three standard roller faces: 160.0 mm (6.30 inches), 200.2 mm (7.88 inches), and 250 mm (9.84 inches). The same dimensions are available for guide spans, and the maximum allowed tension is 156 or 200 N (35 or 45 lbs), depending on wrap style used.
Designed with a cast base and precision milled parts, the durable Symat 25 increases productivity by minimizing downtime and waste. Depending on your needs and sensor(s) selected, this guide provides precise, reliable operation in edge, center, or line guide applications. Optional Servo-Center provides automatic guide centering to speed the setup and threading process.
Fife Symat 50 Offset Pivot GuideRead More
Durable and versatile, the Symat 50 electromechanical offset pivot guide is engineered to accommodate web widths up to 533 mm (21 inches) wide and tensions up to 623 N (140 lbs). This guide is ideal for edge, line, or center guiding applications where short entry and exit spans are required.
Built for long-lasting, reliable operation, the Symat 50 delivers fast response for highly accurate web positioning This guide is available with standard roller faces of 203 mm (8 inches) to 610 mm (24 inches). Optional Servo-Center provides automatic guide centering to speed the setup and threading process.

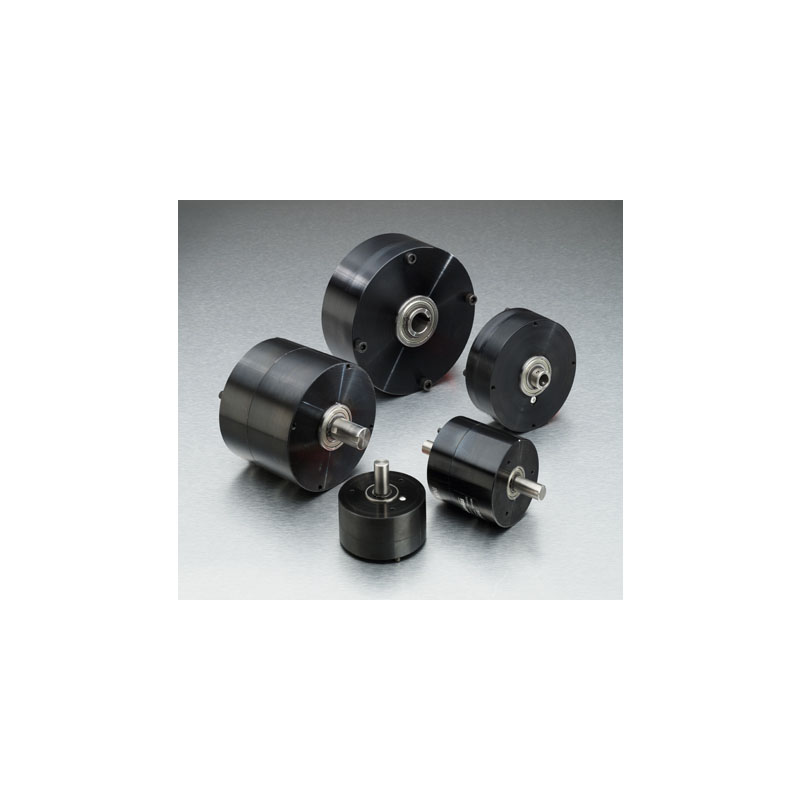

MAGPOWR Global Series BrakesRead More
Versatility and flexibility are the real benefits found in MAGPOWR’s Global Series Magnetic Particle Brakes, as they provide smooth, repeatable, controllable torque independent of speed. This makes them suitable for all kinds of power transmission and tensioning applications. Sizes are available from 5.5 to 325 lb-ft of torque.
This line of brakes features state-of-the-art magnetic particle technology and its compact size is due to through-bores on all machined housings for ease of mounting. The M (Metric) series boasts full metric bores and keyways, as well as metric mounting hardware and setscrews to support international design requirements. The brakes are also available as 24 vdc or 90 vdc.
Models available by Rated Torque:
GBA: 7.5 Nm (5.5 lb-ft)
GBB: 14 Nm (11 lb-ft)
GBC: 35 Nm (26 lb-ft)
GBD: 75 Nm (56 lb-ft)
GBE: 135 Nm (100 lb-ft)
GBF: 441 Nm (325 lb-ft)
MAGPOWR Foot Mounted Magnetic Particle BrakesRead More
Transform your reliable, durable, foot-mounted MAGPOWR C Series Clutches into brakes with the addition of a simple locking bracket. The unit can be adapted by installing a locking bracket on an existing foot-mounted clutch, or by simply ordering a factory-converted unit.
LB-1 / C-1
LB-3 / C-3
LB-10 / C-10
LB-50 / C-50
LB-100 / C-100
B Series Magnetic Particle BrakesRead MoreB Series Shaft Mounted Magnetic Particle Brakes give operators exactly what they want: high-quality, dependable performance with no headaches. The magnetic particle brake is an inherently simple, durable device. They are easy to install, made of rugged cast iron for long life and have minimal moving parts, meaning the brakes can be mounted and start performing immediately.

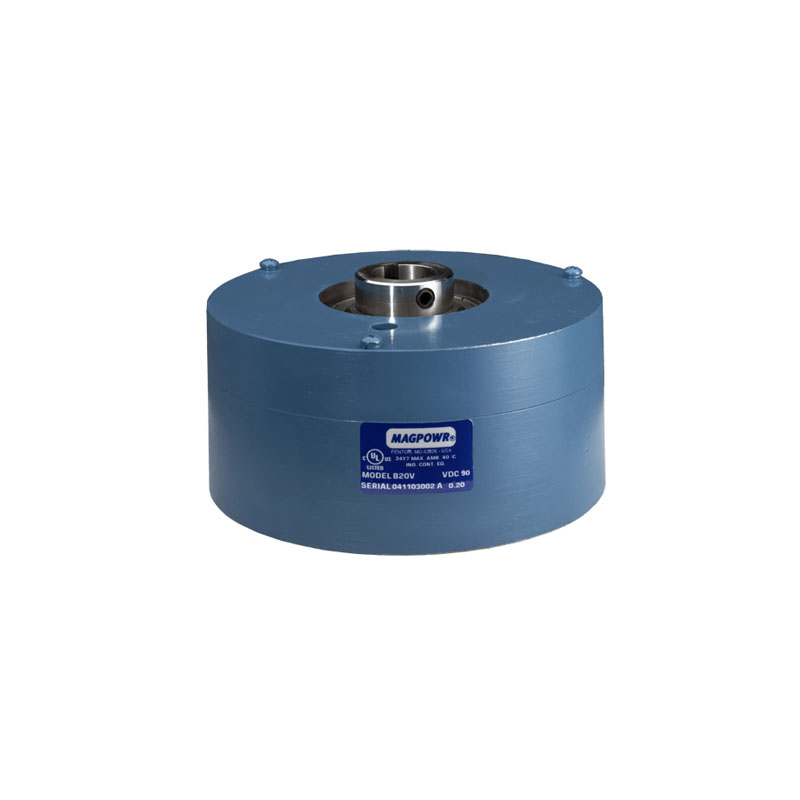

MAGPOWR B-7V and B-20V Vertical Magnetic Particle BrakesRead More
Unlike other magnetic particle brakes, a horizontal axis is not required for shafts utilizing MAGPOWR’s B-7V & B-20V Vertical Magnetic Particle Brakes, thanks in particular to the unit’s disk-shaped rotor. Other brakes sport cylindrical designs, requiring a horizontal shaft axis. The B-7V & B-20V operate with the axis vertical, horizontal, or at any other required angle—the space between the rotor and the two sides is filled with magnetic particles, so the unit can be operated in any orientation.
MAGPOWR’s B-7V & B-20V Vertical Magnetic Particle brakes, made of rugged cast iron for long life, are easy to install and have minimal moving parts, requiring very little installation and calibration. These brakes assist in smooth, repeatable torque that is proportional to current, and applications include tensioning of film rolls on vertical shafts, packaging machines and machine tools.
Tidland Slitter Model SP-500 / MSP-ARead More
The Tidland Slitter Model SP-500 will help operators run more efficiently by increasing the speed and accuracy of knife positioning and minimizing the frequency and complexity of maintenance — two of the main factors in realizing a quick return on investment. This slitter provides the best mix of new technology and proven performance as it is designed to improve profitability and production efficiency by increasing positioning speed, accuracy, and consistency.
Tidland ESP – Electronic Slitter Positioning SystemRead More
Designed to save downtime and increase productivity, Tidland’s ESP – Electronic Slitter Positioning System allows an operator to move 10 knives in under one minute with the web in place with accuracy of +/- 0.1 mm (0.004 inch) deviation.
Created for use in mill finishing and other large-scale converting operations, the ESP delivers intuitive, easy-to-use touch screen interfaces and can retrofit to most winders regardless of web path. Typical materials include: coated and uncoated boards, tissue, newsprint and fine papers. This robust system has been specifically designed to perform reliably in the most demanding environments.
The ESP’s modular design allows for easy upgrade from the manual version, and easy retrofitting into numerous brands of winders, offering the benefits of standardized parts. Converting to ESP’s automatic system affords the benefits of trim management, unlimited set pattern memory and computer software that is easy-to-use, and can be integrated into your mill-wide systems.
