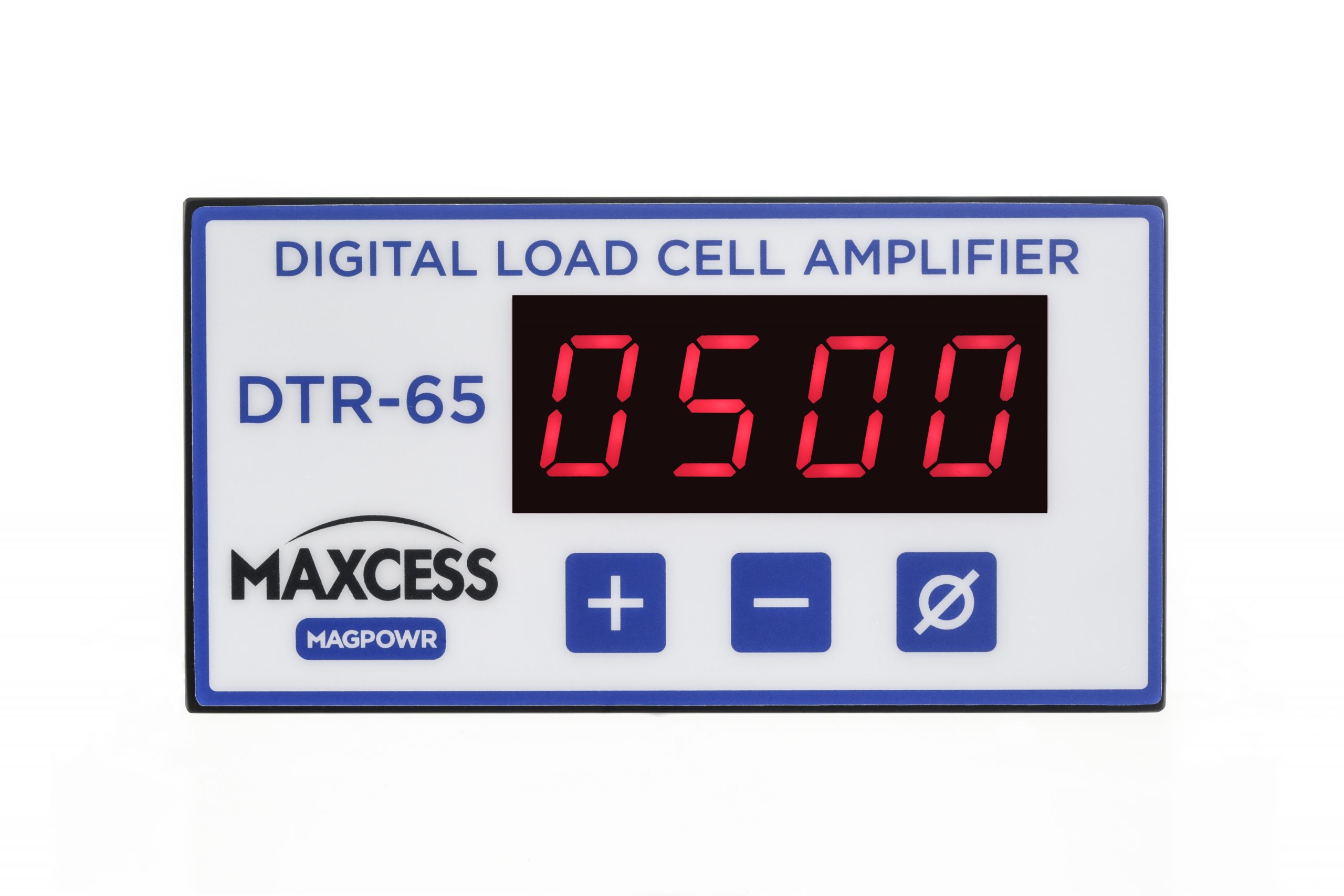

The DTR-65 is an easy choice when needing a tension displayed on a machine panel with the option to also output a tension reference to a drive or PLC for remotely displaying or controlling tension.
A powerful and versatile panel-mounted digital amplifier used to display measured tension locally on a machine panel, the DTR-65 will multiply a millvolt tension signal to a usable 0 to 10 VDC and 4 to 20 mADC analog output.
The DTR-65 is an 1/8 DIN panel mount enclosure that is IP65 protected on the face. It incorporates ease of use and setup with a keypad and a four-segment display, fully programmable low pass filter for each output, tension alarm set points, quick and easy calibration, and even weightless load cell calibration.
The Tidland Cyclone™ Series high speed centering shafts increase throughput by eliminating roll loping and enabling web handling operations to run smoothly at higher speeds. The external
element, two-stage pneumatic design holds the core concentric to the body, reducing machine vibration and wear.
The Cyclone Series is available in diameters ranging from 3 inch to over 20 inch.
Versatility is important for so many pieces of equipment, accessories and components, yet so few actually deliver. Tidland’s expansion shafts are specifically designed for applications where core size variation is common. Operators can adjust the core diameter of the shaft while it remains on the machine, eliminating the need to stock multiple shafts and drastically reducing setup time.
The perfect combination of durability and high-speed operation in a lightweight, ergonomic air shaft is what operators will find in Tidland’s Ultrashaft Carbon Fiber Air Shafts. The Ultrashaft is available with a unique resin rich coating to provide further protection against abrasion, knife cuts, unexpected impact and normal wear and tear from daily shaft handling. This new Ultrashaft M30 results in a lighter overall shaft weight and eliminates guessing if the carbon fiber under a cracked sleeve is safe for your application.
Further enhancements to the shaft include high-torque lugs and non-metallic retraction springs to virtually eliminate bladder failures giving you an ultra-reliable, ultra-durable, ultra-high speed, Ultrashaft.
Tidland’s Narrow Web Shafts were created specifically to meet the needs of narrow-web converters. These economical shafts are designed to fit any press — with cantilevered, drop-in, flange, and bar mounting styles available.
