Graymills H2000 Series

Centrifugal Ink Pump

Centrifugal pump for use on narrow web, tape, tag, label, envelope, and smaller specialty presses. Tri-rod construction and Teflon coating for easy clean–up. Optional Quick Demountable motor. ATEX and CE compliant models available. High speed version, H2000H series, can be used for lifting heavier viscosity liquids to higher print decks and into chambered doctor blade systems that require more pressure. The H200H series delivers higher flow for top performance – for use on mid size flexographic and rotogravure presses. Fits in 2, 5, 10, 20, and 30 gallon containers in standard or stainless steel.



Request Quote
Categories: , , ,

Description

Typical Applications

Narrow web, tape, tag, label, envelope, and smaller specialty presses.

Standard Features

  • Includes all standard and H-Series benefits
  • 3/4” NPT discharge
  • Round volute fits most ink tank sumps
  • Mounting plate on round-hole tank lids
  • Adjustable Agitor® plate for in-tank circulation

Optional Features & Accessories

  • CE or ATEX compliance
  • Mounting plate to permit pump to be used with keyhole-style tank lids
  • Quick Demountable motor. (Not available in ATEX-compliant models)
  • Metric lengths and threads available

Motor Options

  • 1/8 HP, 1725 RPM@60Hz (1450@50Hz) electric totally enclosed. For explosion-proof, consult factory.
  • Variable speed air motor
  • Dial-A-Flow™ variable speed electric
  • Quick Demountable motor. (Not available in ATEX-compliant models)
  • CE/ATEX motors

Motor Voltage/Air Options

  • E, F, KE, KF, GAM (#2)

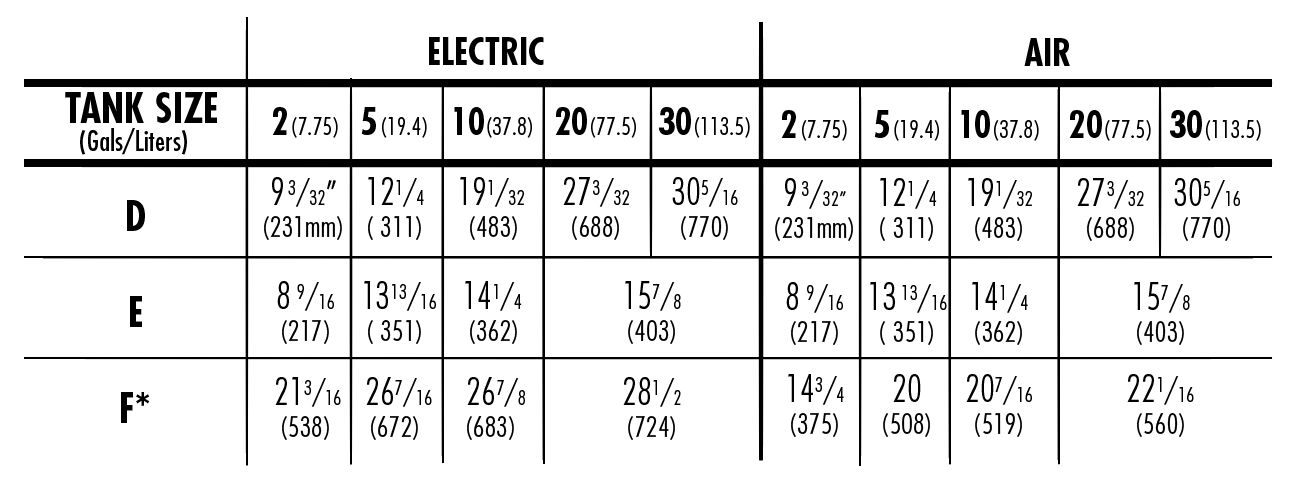

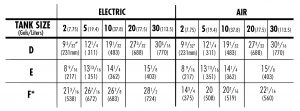

Tank Options

  • 2 gallon stainless steel (H2002 only)
  • 5 gallon mild steel or plastic (H2005 only)
  • 10, 20, 30 gallon mild or stainless steel (H2005 only)
