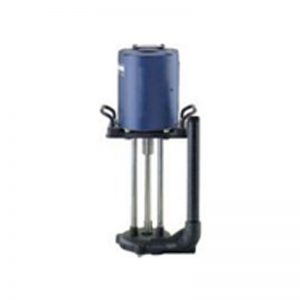

Graymills M3 Series

M3 Series

Centrifugal pump with high performance volute, ergonomic design, and lighter weight, for use on mid and wide web flexo and gravure applications; especially those requiring more flow and/or higher print decks. Optional Quick Demountable motor. ATEX and CE compliant models available. Fits in 5, 10, 20, and 30 gallon tanks.

Request Quote
Categories: , ,

Description

Typical Applications

For mid- and wide-web flexo and gravure applications, especially those requiring more flow and/or higher print decks.

Standard Features

  • Includes all standard and H-Series benefits
  • 1” NPT discharge
  • Mounting plate for use with keyhole-style lids
  • Adjustable Agitor® plate for in-tank circulation

Optional Features & Accessories

  • CE or ATEX compliance
  • Quick Demountable motor
  • Metric lengths and threads available

Motor Options

  • 1/2 HP, 1725 RPM@60Hz (1450 RPM@50Hz) totally enclosed electric or explosion-proof electric
  • 0,37 kW ATEX explosion-proof electric, 2850 RPM@50Hz
  • High speed (2850/3450 RPM), 50/60Hz motor. Consult factory.
  • Variable speed air motor
  • Dial-A-Flow™ variable speed electric
  • Quick Demountable motor
  • CE/ATEX Motors

Motor Voltage/Air Options

  • E, F, KE, KF, KFF, KFX, VA, VB, GAMC (#2 or #4)

Tank Options

  • 5, 10, 20, 30 gallon mild steel standard. Stainless steel optional on 10, 20, 30 gallon.
