The Opal turret range gives you matchless results even for the most challenging of finishes. From our competitively priced applications right through to the advanced glueless technology, all machines are ideal for narrow web producers.
Your Opal can be set to run a given length or number of labels and will then cut and transfer the web without stopping. Each machine can run light or high tensions to allow a wider range of materials to run on one machine.
Maximum unwind diameter (for offline) 800mm or 1200mm
Maximum rewind diameter 400mm
Maximum machine speed 250m/min
Slitting driven rotary shear
Able to handle all self adhesives substrates and papers
Features:
Fully automated 4 spindle turret with range of shaft sizes
2 spindle mode for running large diameters
Choice of core glueing or patented ‘glueless’ system to ensure glue-free product
Advanced tension control avoids slippage or scratches even in sensitive materials
Intuitive PLC operator touch screen for ease of use
Non-stop production due to automatic offload which ejects rolls from machine to free up operator
All electrical operation makes it the hygienic choice
Optional extras include: missing label detection, male lift off slitting station or cartridge system, tail closure by label applicator or glue, transfer to new cores by glue or glueless cinch, turner bar for labels inside winding, range of shaft sizes
Easily integrate your read/write RFID functional system

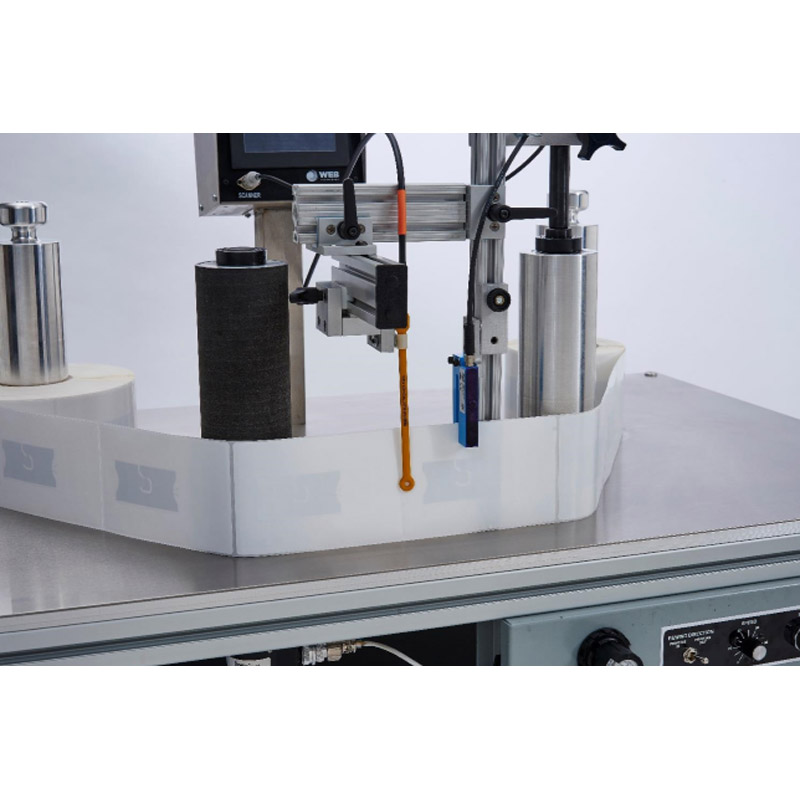

Save money and time by quickly and accurately counting and programming your RFID tags with the Web Techniques WT-36 Rewind System, in one step.
Bi-directional rewinding system, produce high quality rolls in either direction that is fast, easy to use, requires practically no set-up time, and built in photoelectric counting system to trigger RFID read/write unit.
Roll-to-Roll Label Inspection Slitting and Rewinding
Rotoflex HSI provides superior roll-to-roll label inspection, slitting and rewinding, in an operator-friendly horizontal orientation. This durable design is focused on productivity, offering considerable time and waste savings to increase efficiency in today’s demanding production environments.
Rhyguan Smart 450 HMS Advanced Inspection Slitter Rewinder with excellent tension control suitable for label stock and thin film material. An optional 100% inspection camera can recognise all print defects and with precise fault placement, will stop the web with the print defect positioned right on top of the editing table. Available in width of 330mm, 450mm and 520mm.
