Description
Features:
- Used in live shaft applications
- Standard in metric models
- Flange and pillow block mounting
- Four load ratings from 50 to 500 newtons (11 to 112 pounds) in size A, four load ratings from 500 to 3000 newtons (112 to 675 pounds) in size B
- Ruggedly constructed for long life and dependability
- Mechanical overload stops for 10x protection under severe overloads
- Full Wheatstone bridge design for measurement accuracy and low temperature drift
- Can be mounted on the inside of machine frames or hidden on the backside of the machine frames
- Size A can be mounted using three bolts on a 90 mm bolt circle or four bolts on a 75 mm bolt circle
- Size B can be mounted using three bolts on a 150 mm bolt circle or four bolts on a 135 mm bolt circle

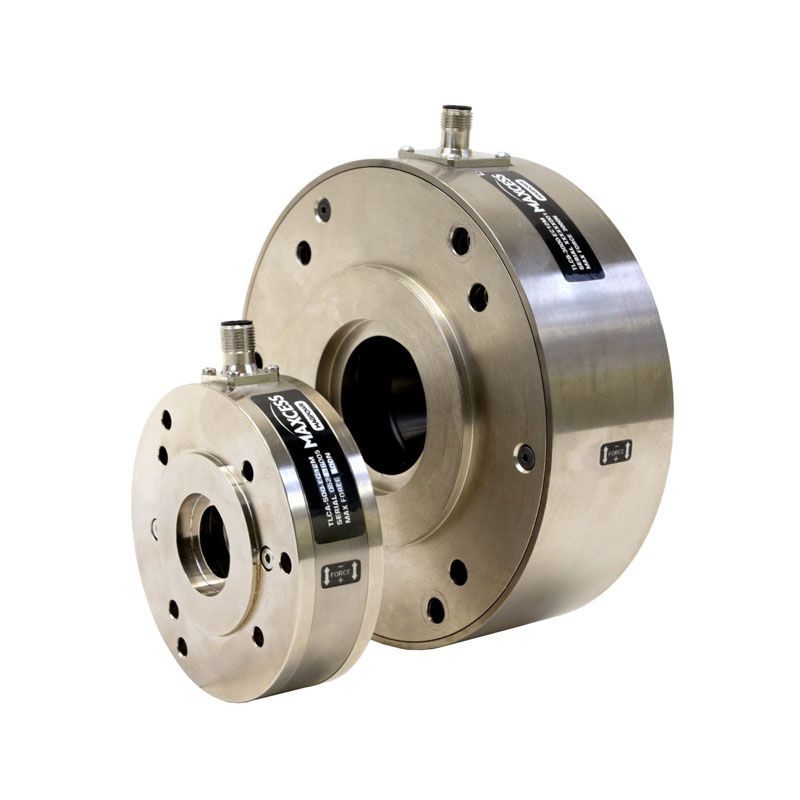

MAGPOWR TLCA AND TLCB SPECIFICATIONS
- Gage Resistance 350 Ω nominal
- Excitation Voltage 10 VDC maximum
- Output Signal 1.5 mV/V, 15 m VDC maximum per sensor at full load rating
- Operating Temperature-20° to 80° C
- Combined Non-linearity and Hysteresis 0.5% of full scale maximum
- Repeatability 0.2% of full scale maximum
- Deflection at Full Load- Size A 0.17 mm
- Deflection at Full Load- Size B 0.15 mm
- Temperature Effect on Zero 0.02% of rating per °C
- Overload Stops 105% to 150% of full load rating
- Overload Protection 10X full load rating
- MAGPOWR Mating CableLLC series with straight connector, LCCRA series with 90 degree connector
- Climate Class3K3 (EN60721)
- Protection ClassIP67
- Load Ratings TLCA 50, 100, 250, 500 Newtons (11, 23, 56, 112 pounds)
- Load Ratings TLCB 500, 1000, 2000, 3000 Newtons (112, 225, 450, 675 pounds)
- ConstructionNickel plated steel (beam), nickel plated aluminum (covers)
