Description
General Accessories
Basket Strainer – Removes Heavy Contamination
Developed for use in corrugated and tissue plants, 10 mesh (2000 micron) stainless steel basket fits inside standard U.S. 5 gallon pails. Return hose from fountain drains into strainer where heavy contaminants are trapped.
- 749-27341 Basket Strainer

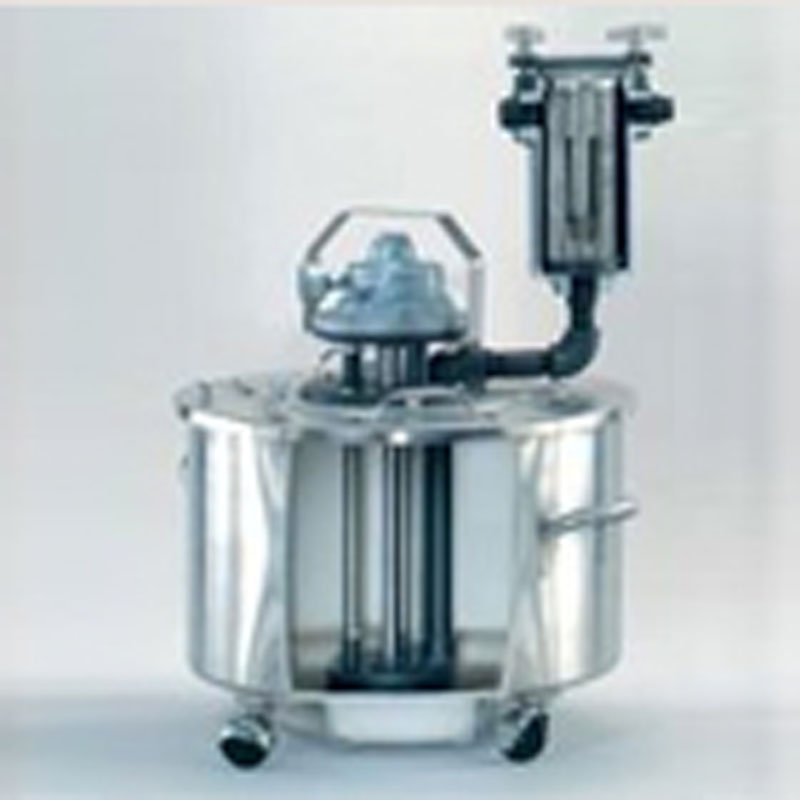

Tank Liners – To Speed Clean-up
High density polyethylene reusable tank liners feature built-in sumps to conform to Graymills standard 10, 20 and 30 gallon round tanks. Disposable liners are available for 2 and 5 gallon tanks.
- C-29128 2 gal. disposable, case of 250
- 607-07344 5 gal. disposable, case of 100
- 607-04850 10 gal. reusable
- 607-04851 20 gal. reusable
- 607-04852 30 gal. reusable
Flow Controls – For Proper Ink Delivery
Bypass flow controls, valves and nozzles permit easily adjusted control of the amount of ink delivered to the printing deck. Bypasses are not recommended with water-based inks as they can contribute to foaming.
Valves
- 738-02535-41 1/2” Gate valve
- 738-05045-41 1/2” Ball valve
- 738-02536-41 3/4” Gate valve
- 738-04280-41 3/4” Ball valve
- PV14001 Pinch valve
Bypasses
- B2GV For H3000, H4000, and M3 Series Pumps (includes gate valve)
- B2 For H2000 Series Pumps with 5 gal tanks (includes pinch valve)
- BP2002 For H2000 Series Pumps with 2 gal tanks (includes pinch valve)
- BPVP For HV Series Pumps
Hose Support Spring – Prevents Hose Kinking
- 765-14070-13 For 1/2” and 3/4” ID hose (8” long)
Fountain Supply Nozzles
The convenient way to secure ink supply line to the fountain. Block mount permits easy adjustment of nozzle height.
- C-21689 1/2” nozzle and mounting block
- C-25988 3/4” nozzle and mounting block
Air Filter/Regulator/Lubricator (FRL) – Keep Air Motors Running
Filters and removes moisture from compressed air while adding oil mist lubrication. 0-160 PSI gauge, 1/4”and 1/8” outlet. Mounting brackets included.
- FRL-1 1/4” ports
- FRL-2 1/8” ports
Zahn Cups – For Accurate Viscosity Control
The standard of viscosity measurement in Flexographic and Rotogravure printing operations worldwide. Individually tested and calibrated. Polished stainless steel.
- 746-04568 #2 Zahn signature
- 746-08785 #2 E Z (equivalent Zahn, meets ASTM D4212)
- 746-07725 #3 Zahn signature
Ink Funnel – Makes Filling Ink Containers Easy
Large mouth prevents spills, keeps work area clean. Ten inch spout has “speed bumps” which keep ink from free-falling into tank to reduce splashing and foaming. High density polyethylene.
- IF-5 Ink Funnel
Peristaltic Accessories
- 2GS 1 or 2 gallon stand. Pump bolts to top.
- 5GS 3 or 5 gallon stand. Pump bolts to top.
- 5GS-DH 1, 2, 3 or 5 gallon dual-pail stand for DH.
- Pump bolts to top.
- LBK “L”-shaped mounting bracket for direct mounting to press.
- 682-36240 Bracket for mounting DDPSFNT surge suppressor/filter to 5GS.
- 729-90598-50 3/8” replacement tubing for PPS/PQS models, 50’ per box.
- 729-90597-50 5/8”replacement tubing for PPL/PQL models, 50’ per box.
- 729-90588-50 5/8”extended life tubing for PPL/PQL models, milky white color, use for solvent inks, 50’ per box.
Replacement Rotors
- PPS-ROTOR For PPS/PQS Series
- PPL-ROTOR For PPL/PQL Series
- PQLM-ROTOR For PQL Aluminum Head
Replacement/Spare Heads (Complete Assembly)
- PPS For PPS Series, Standard Head
- PPL For PPL Series, Standard Head
- C-41374 For PQL Series, Aluminum Head
- C-39597 For PQS Series, Removable Head
- C-39600 For PQL Series, Removable Head
- PPS-DHA For PQS Dual Head Series, Removable Head
- PPL-DHA For PQL Dual Head Series, Removable Head
