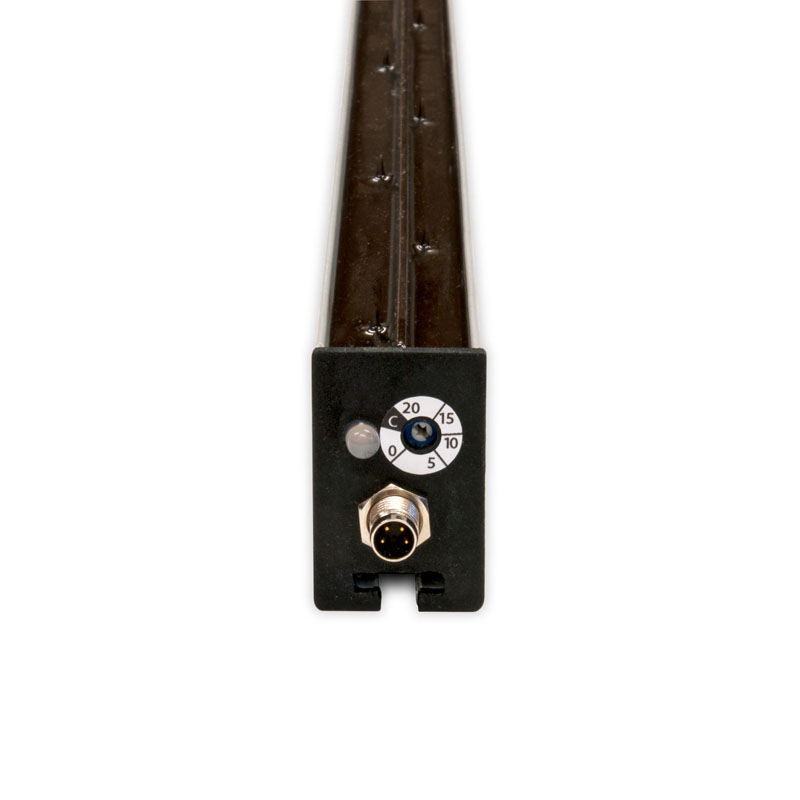

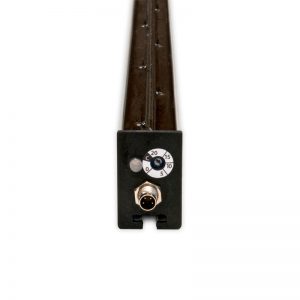

The Intelligent Discharging Bar IDB-7 (shockless) we produce can be used in many sectors, such as textile manufacturing, paper, plastics, printing, in converting, packaging etc.
The anti-static bar IDB-7 is designed to be installed in machines working at high speed, his design is very compact 40×25 mm and the profile is in FR-ABS filled with epoxy resin.
This anti-static bar has an integrate power supply, so no high tension cable is needed, only 12-24 V supply, the frequency is adjustable (0-20 Hz) and is provided with clean pin alert by a led and remote signal PNP and NPN.
Green/blu flashing= ok, Violet= needs cleaning, Red=fault.
The emitters (option tungsten) are connected resistively to high voltage, so there are no risks for the operator in the event of accidental contact.
Our antistatic bars are custom made according to customers’ requirements.

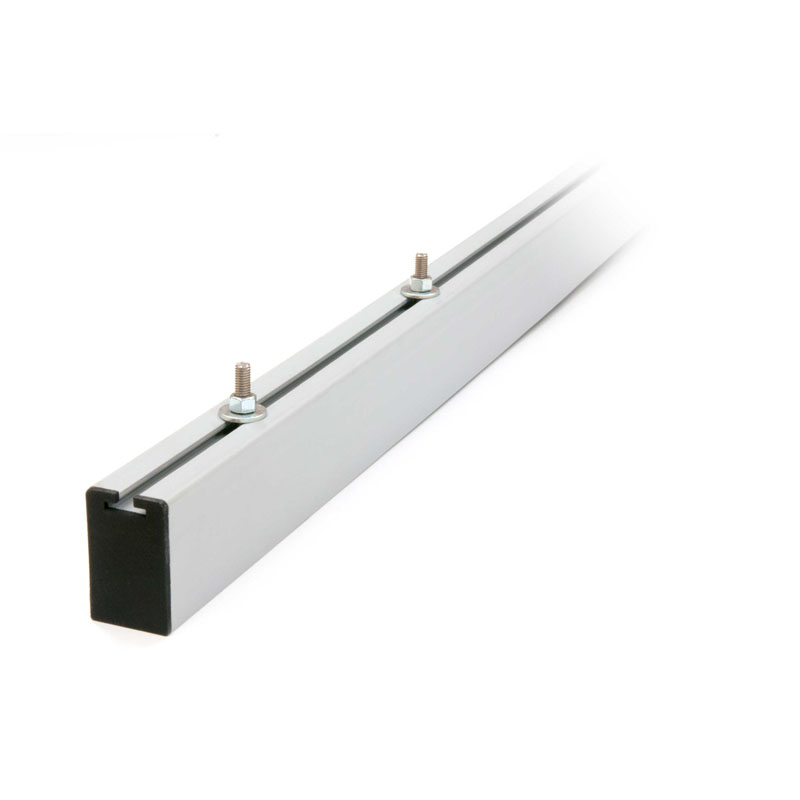

This antistatic bar has a slit where to place the M5 screws for fastening, so it is possible to place them anywhere for the entire length of the bar.
| Working distance: | 20-200 mm |
| Operating voltage: | 7500 pulsed |
| Frequency: | Adjustable 0-20 Hz |
| Integrate power supply: | Integrato 12-24 Vdc input |
| Weight: | 1,2 Kg/m |
| Ambient temperature: | 0°C-70 °C Max humidity 65% |
| Lenghts: | From 250mm to 5000mm |
The XLT™ digital technology was developed for precisely transferring thin ink films with micron accuracy. We recommend and guarantee that when you work with the strongest, thinnest film of ink, you will get the best ink mileage, best print quality, easiest impression set-up, and you’ll get it at the most consistent levels possible.
This product was created specifically to clean parts from the HP Indigo Digital Press. The parts cleaner was designed with input from HP Indigo experts to operate with HP Imaging Oil. The Graymills HP Indigo Edition parts cleaner leverages 80 years of Graymills experience in graphics and parts washing.
The XVR™ digital technology was developed for precisely transfering thin ink films with micron accuracy. We recommend and guarantee that when you work with the strongest, thinnest film of ink, you will get the best ink mileage, best print quality, easiest impression set-up, and you will get it at the most consistent level possible.
Centrifugal pump with high performance volute, ergonomic design, and lighter weight, for use on mid and wide web flexo and gravure applications; especially those requiring more flow and/or higher print decks. Optional Quick Demountable motor. ATEX and CE compliant models available. Fits in 5, 10, 20, and 30 gallon tanks.
