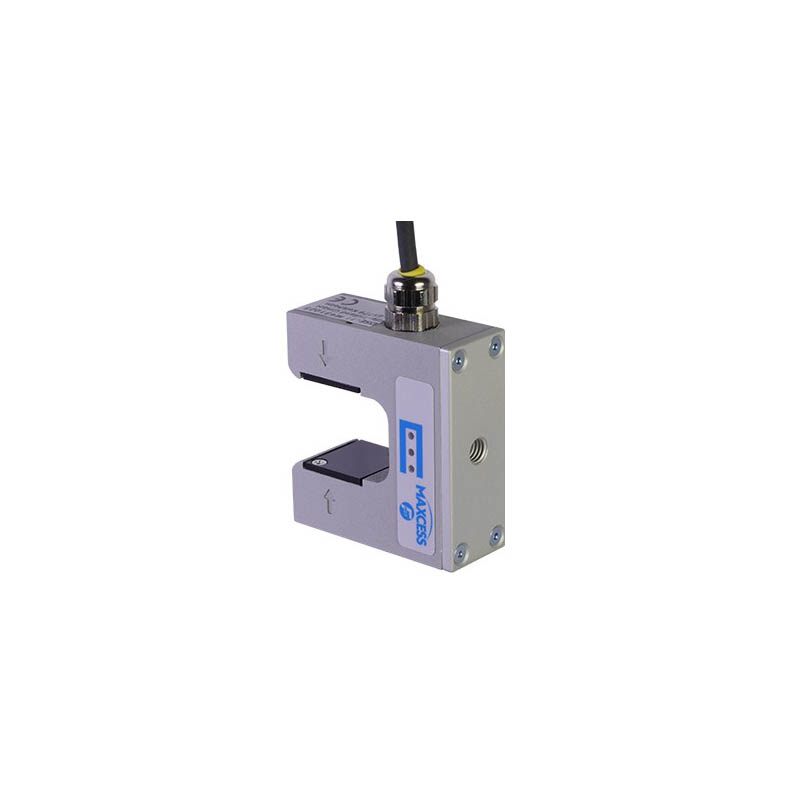

The DSE – 11 digital infrared sensor is the smallest infrared sensor available from Fife. Because of its compact size, light weight, and insensitivity to ambient light, it is ideal for many applications where accurate web guiding is required and space is limited.

The DSE – 11 Infrared Sensor measures the lateral position of the guided material photo electrically. The control range (proportional band) allows significant guide point adjustment. The DSE – 11 is often used in pairs for centre guiding when web width variations are limited. Its excellent technical specifications allow it to also be used with a Fife processor to guide clear film. Normally the DSE – 11 is used for guiding opaque materials.

It is possible to operate the DSE – 11 with either a supply voltage of 12 V or 24 V. The output signal would automatically be switched over in that case. In 12 V supply mode the sensor provides an output signal from 0 to 10 mA and can be connected to all available Fife web guide processors. In 24 V supply mode the sensor supplies an output signal between 4 and 20 mA and can be easily connected to a PLC as well.

The DSE – 11 has a built-in LED display, visible from both sides, and shows directly on the sensor information about the operating status like for instance the existence of the supply voltage, position of
the edge of the web inside the field of view or error messages.
