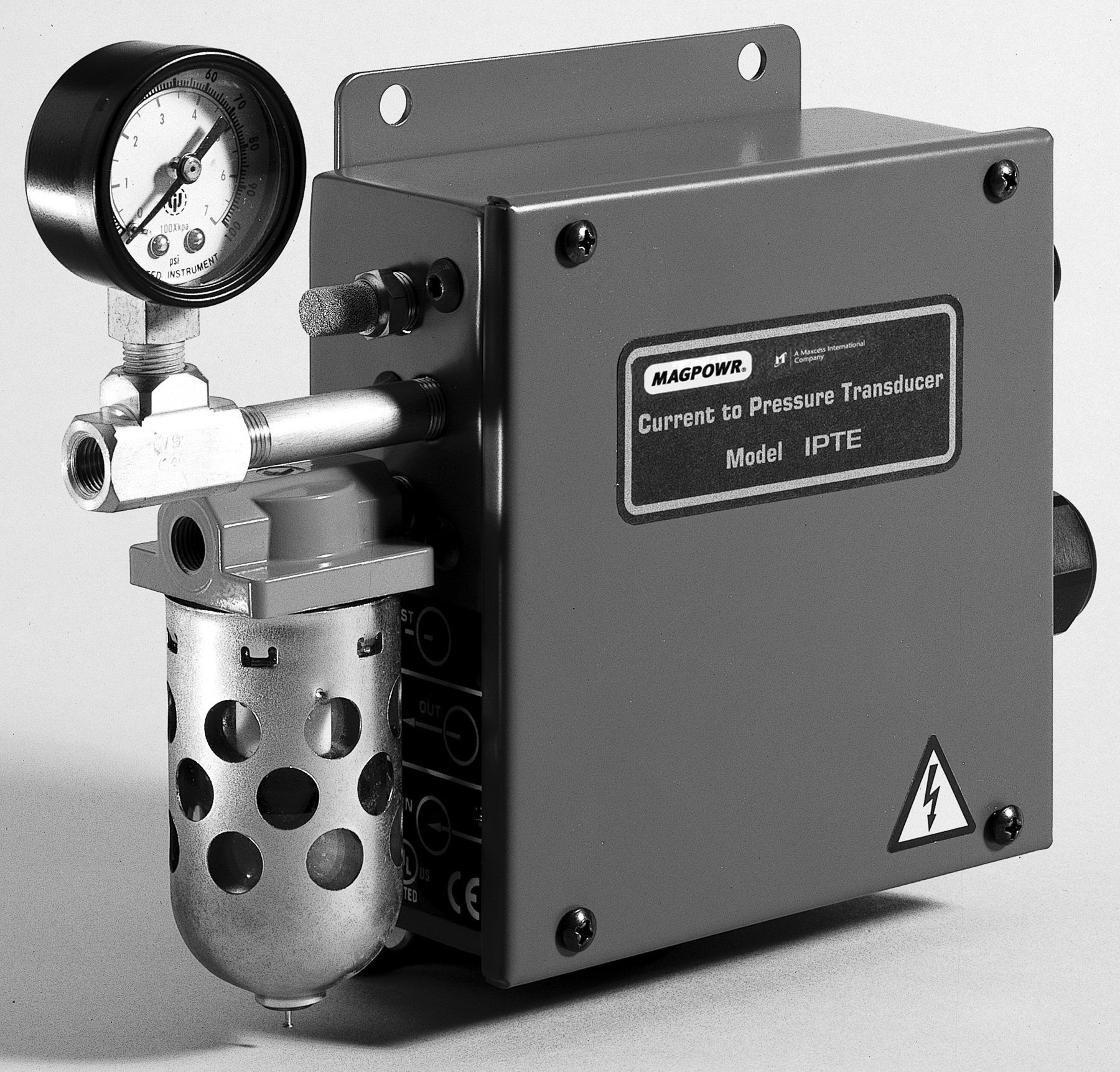

MAGPOWR IPT-E Current to Pressure Transducer

MAGPOWR’s IPT-E Current to Pressure Transducer provides two benefits right out of the box: its single manifold design facilitates its small size, and the unit requires absolutely no calibration, so it’s ready-to-use immediately. Versatile and easy to use, the IPT-E provides superior response, accuracy, and flow characteristics, which are critical in precise tensioning applications. The unit operates on 115/230 VAC, normal dry shop air, and accepts a 4-20 ma control input signal.

Request Quote
Categories: , , , , ,

Description

Features:

  • Superior response for control applications
  • Compact surface mount design
  • Ready to use, no calibration required
  • Operates any pneumatic clutch or brake, regardless of make or size
  • Accepts 4-20 mADC control input signal
  • Accurate and repeatable
  • IP65 protection against dirt and liquids

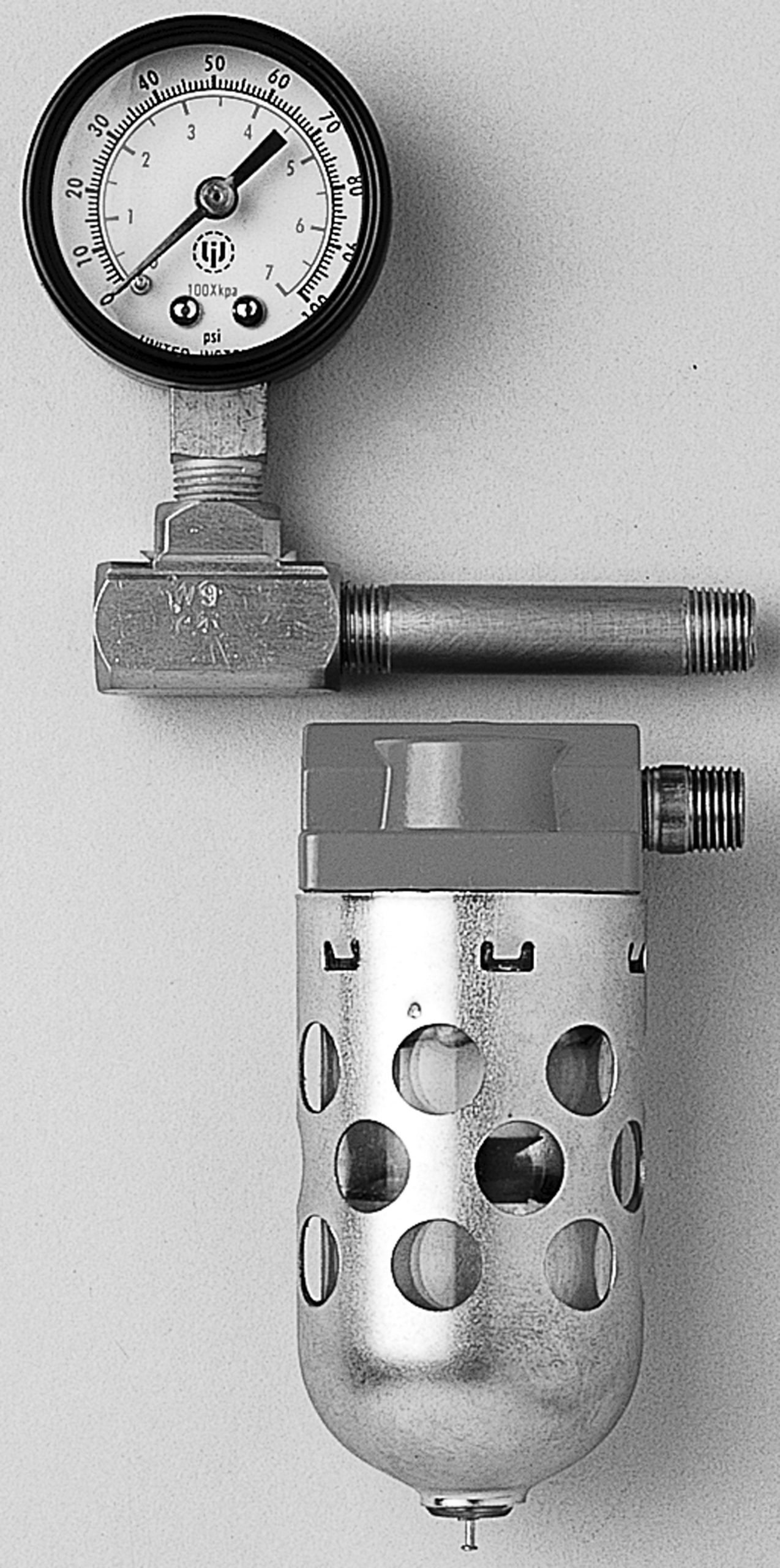

  • Optional pressure gauge and air line filter kits are available
  • UL and CE Approved



MAGPOWR IPT-E SPECIFICATIONS

  • Output0 to 80 psi
  • Power Input115/230 VAC ± 10 %, 50/60 Hz switch selectable, 6 VA
  • Control Input4 to 20 mADC, 249 Ω impedance
  • Linearity, Hysteresis and Repeatability0.5% of full scale
  • Flow Rate3 scfm
  • Minimum Supply PressureGreater than maximum desired output
  • Maximum Supply Pressure150 psi
  • Operating Temperature0 to 40˚ C
  • Storage Temperature-30 to 80˚ C
  • Pneumatic Ports(3) 1/8 NPT threaded ports
  • EnclosureIP65 (IEC529)
