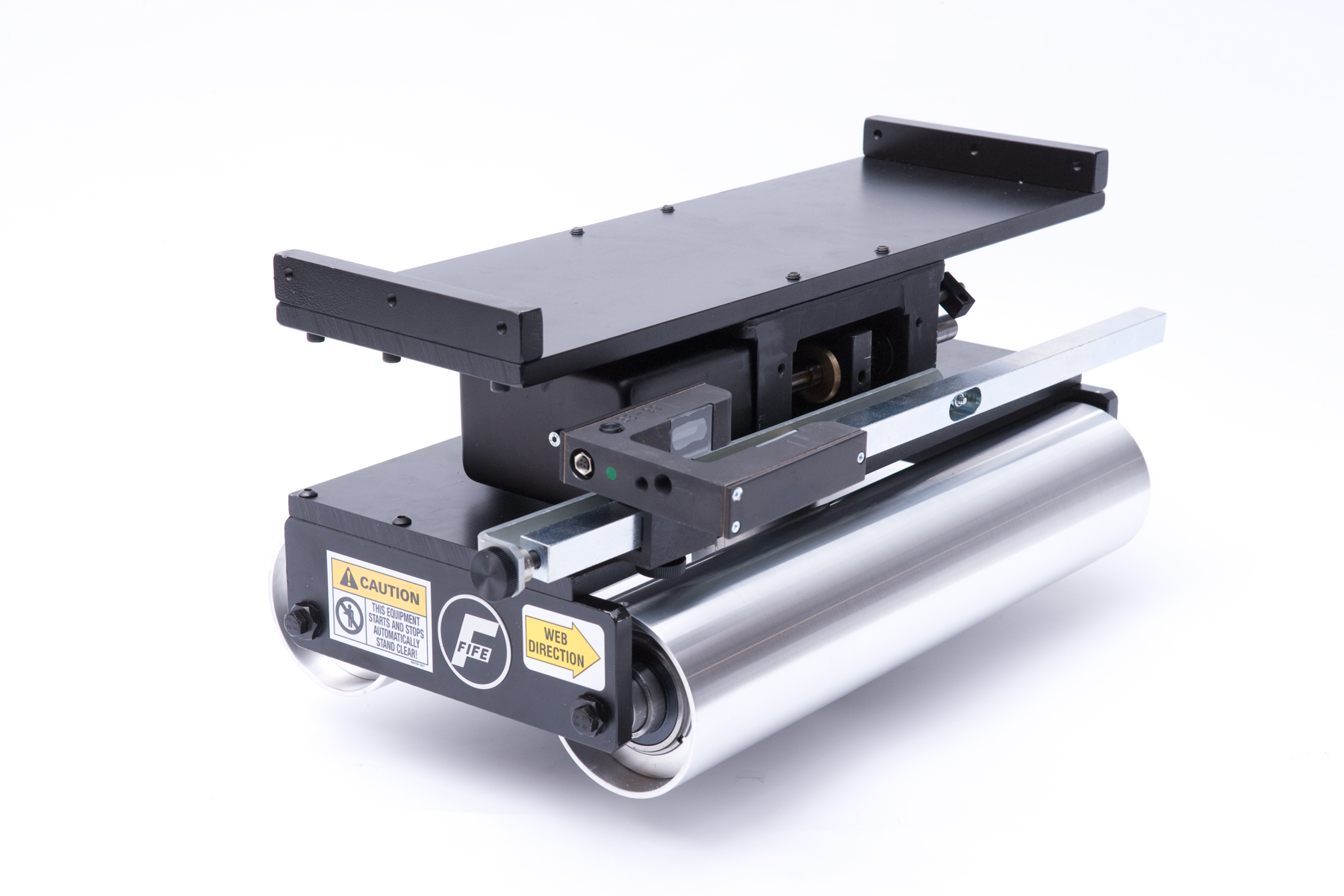

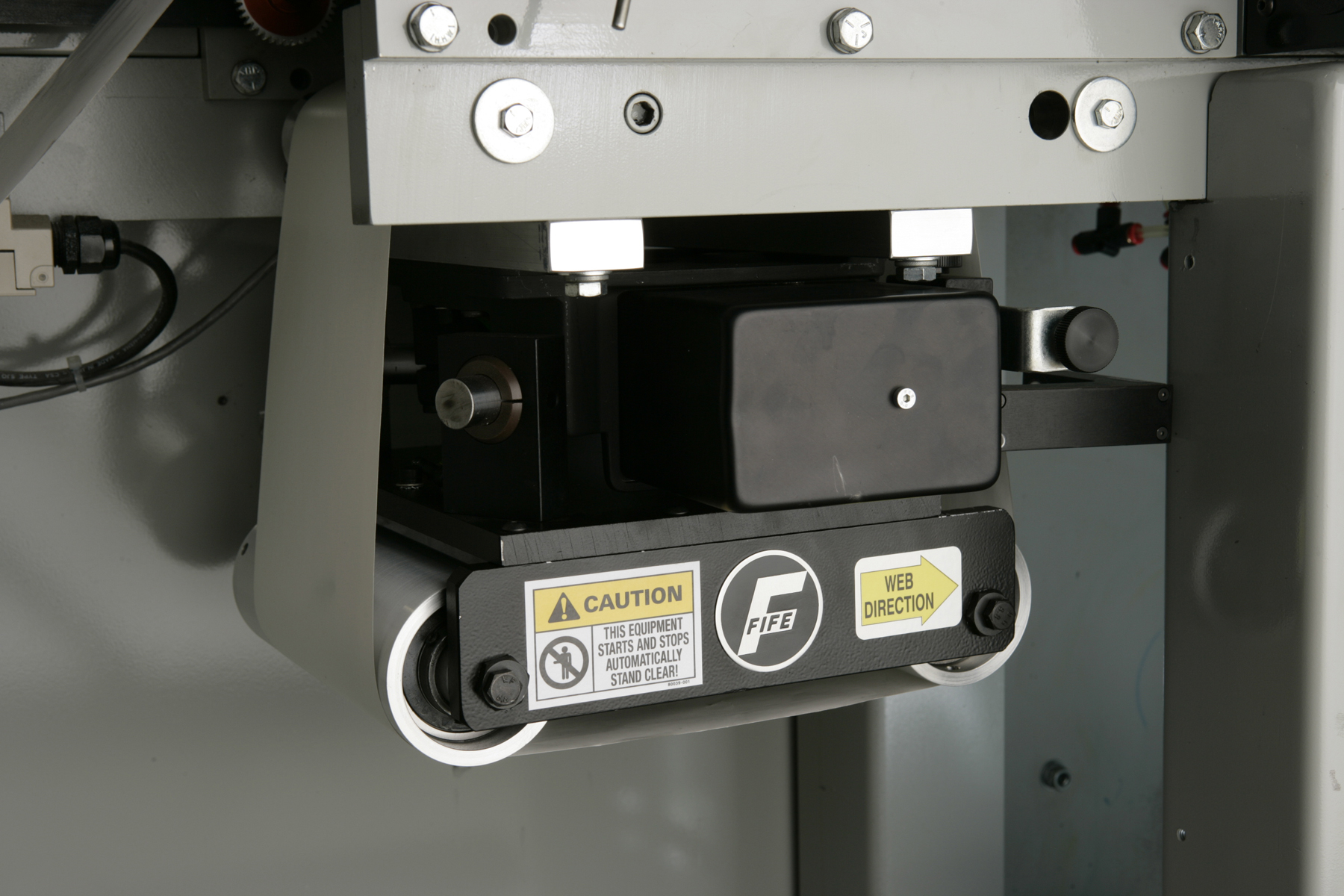

Fife Symat 25 Offset Pivot Guide

The Symat 25 is a compact, versatile electromechanical system engineered for narrow-web applications where short entry and exit spans are required. This offset pivot guide is available with three standard roller faces: 160.0 mm (6.30 inches), 200.2 mm (7.88 inches), and 250 mm (9.84 inches). The same dimensions are available for guide spans, and the maximum allowed tension is 156 or 200 N (35 or 45 lbs), depending on wrap style used.

Designed with a cast base and precision milled parts, the durable Symat 25 increases productivity by minimizing downtime and waste. Depending on your needs and sensor(s) selected, this guide provides precise, reliable operation in edge, center, or line guide applications. Optional Servo-Center provides automatic guide centering to speed the setup and threading process.

Request Quote
Categories: , , , ,

Description

Key Features

  • Compact design for highly accurate guiding under tight space constraints
  • Fully proportional for fast, accurate guiding
  • Durable construction for low maintenance and long-lasting reliability
  • Very high frequency response
  • Accommodates all threading styles
  • Precise, backlash-free actuator and DC servomotor
  • Optional Servo-Center available to speed setup and threading
  • All standard Fife sensors and web guide controllers can be used for edge, center or line guiding
  • Optional mounting brackets and stands are available
  • Custom designs are available upon request

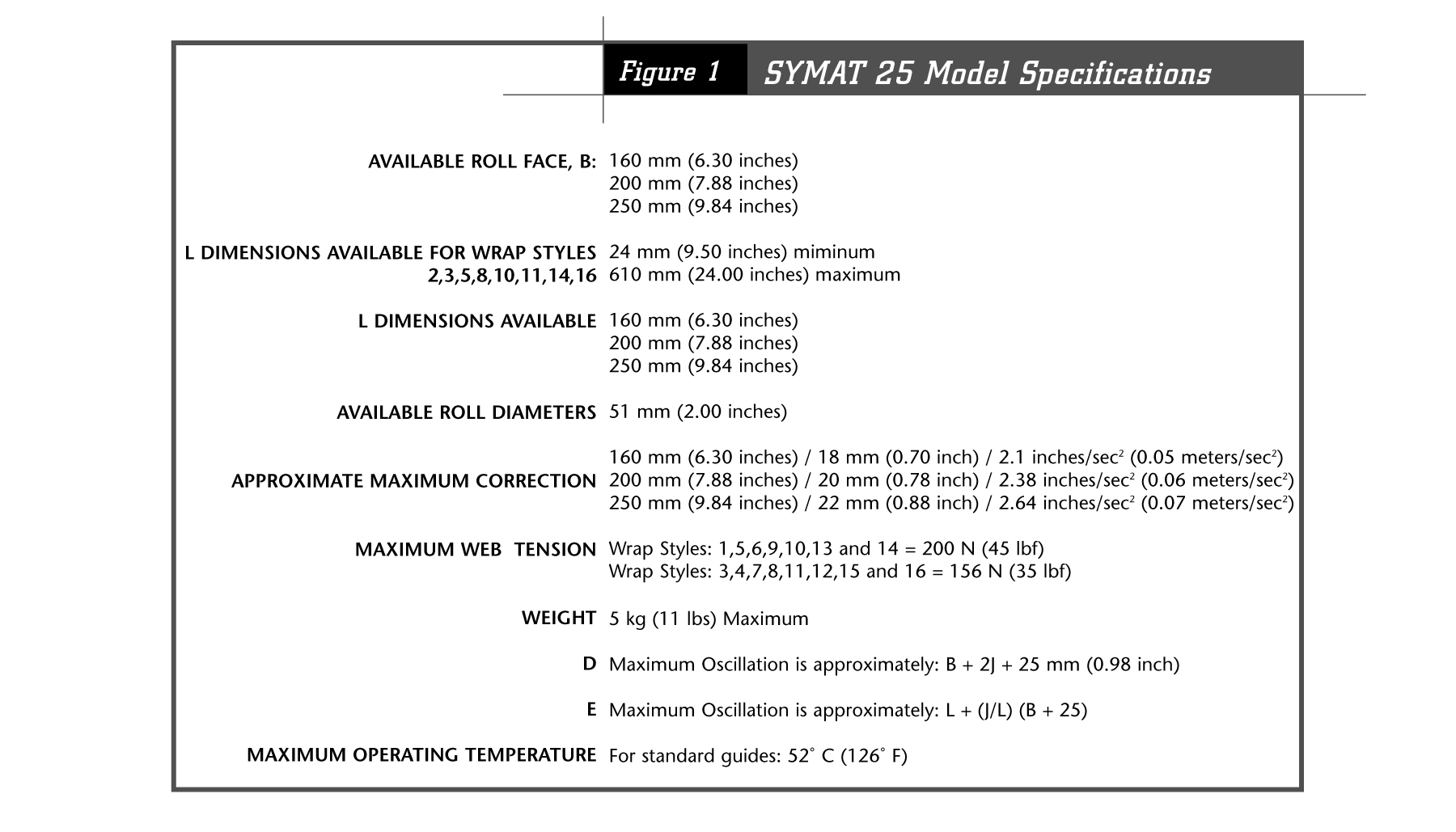

FIFE SYMAT 25 OFFSET PIVOT GUIDE SPECIFICATIONS

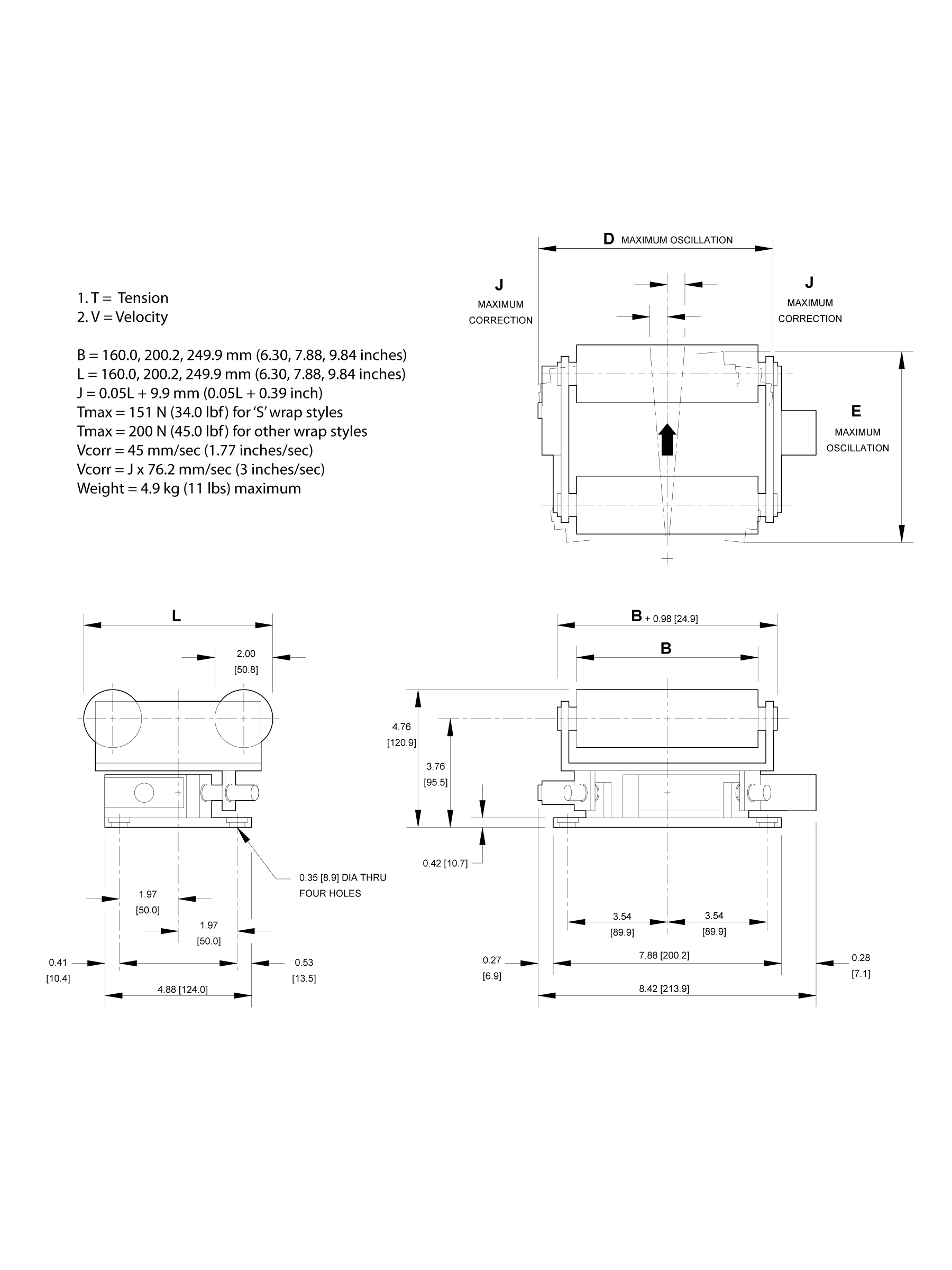

  • Guide Span and Roller Face Minimum 160 mm
  • Guide Span and Roller Face Maximum 250 mm
  • Roller Diameter 50.8 mm
  • Load Capacity Up to 200 N
  • Maximum Correction+/- 22.4 mm
