Fife SE-26B Digital Line Guide Sensor

The SE-26B is a visible white LED light sensor that can be used to guide to the center of a line or to an edge. The sensor provides two output signals to the Fife guiding controller, one for EDGE mode and
one for LINE mode. Featuring 100,000 lifetime hours, the lens and cover components can be unscrewed and interchanged to change the sensing orientation.

Request Quote
Categories: , ,

Description

FIFE SE-26B LINE GUIDE SENSOR SPECIFICATIONS

  • Supply Current50 mA, + 12 VDC; 40mA, – 12VDC
  • EnclosureIP65
  • IlluminationWhite LED
  • Climate Class3K3 (EN60721)
  • LED Lifetime Hours100,000
  • Relative Humidity5% to 85% grams
  • Operating Temperature Range-0 to 60˚ C
    -22 to 140° F
  • Storage Temperature-0 to 80° C
    -22 to 176° F
  • Pollution Degree2 (IEC664-1)
  • Output Range-20 mA to +20 mA for line guiding; -20 mA to +10 mA for edge guiding
  • Supply Current50 mA, + 12 VDC; 40mA, – 12VDC
  • EnclosureIP65
  • IlluminationWhite LED
  • Climate Class3K3 (EN60721)
  • LED Lifetime Hours100,000
  • Relative Humidity5% to 85% grams
  • Operating Temperature Range-0 to 60˚ C
    -22 to 140° F
  • Storage Temperature-0 to 80° C
    -22 to 176° F
  • Pollution Degree2 (IEC664-1)
  • Output Range-20 mA to +20 mA for line guiding; -20 mA to +10 mA for edge guiding

Related products

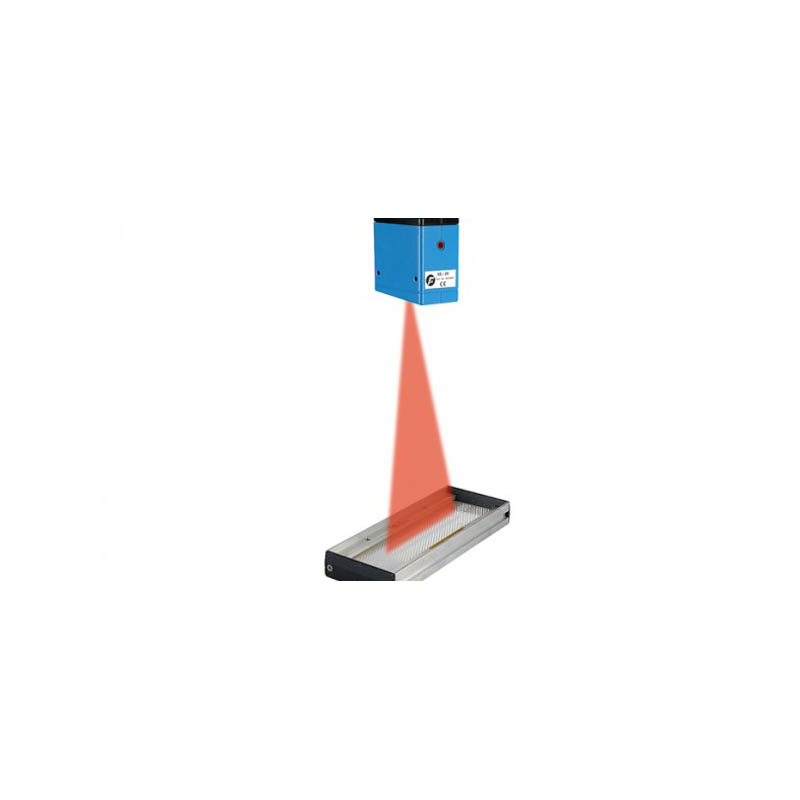

  • SE-20 Wide GAP Sensor
