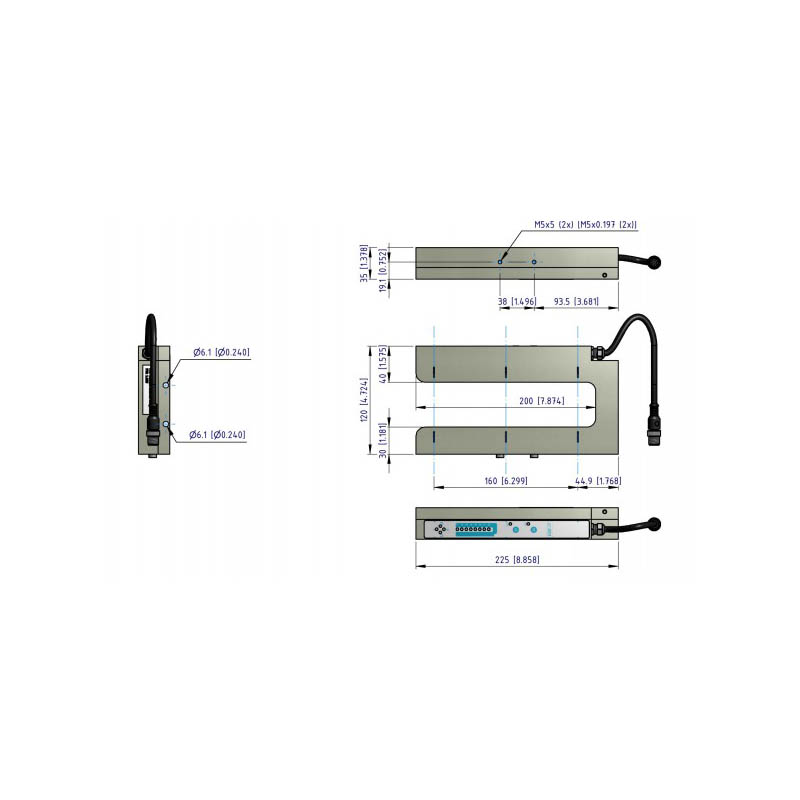

The DSE-17 is a digital wide proportional band infrared sensor. The sensor is most suitable for applications where opacity or density variations may occur, such as tissue, non-woven, textile, paper, foil, and for many opaque films. It can track up to 4 independent web edges simultaneously.
When web width variations exist, the wide proportional band of the DSE-17 sensor eliminates the need for the manual repositioning of the sensor.
Thanks to its IP-65 rating the DSE-17 can be installed even in the presence of water spray or condensation. The digital technique is immune to higher levels of contamination, compared with traditional analog sensors. The contamination of the sensor acrylic window can be monitored via a proportional analog output signal. An air sweep system is available as an option. In addition the DSE-17 sensor is protected against the influence of ambient light.
Tidland’s Model D2 Differential Air Shaft is designed for duplex center or surface winders, whether variable speed control or not. It is simple to set up, easy on the cores and reacts well to multiple roll tension equalization. Quick-to-position tooless locked core stops provide optimum control over roll quality and setup time.
Bottom line is, operators can increase productivity by running varying roll sizes at one time with the help of Tidland’s most affordable differential air shaft
Tidland’s Raptor Series Air Powered Lug Chucks are easy to use and maintain and help eliminate the core damage usually associated with shaftless applications. The Air Powered Lug Chuck is ideal for high-speed printing, laminating, sheeting applications on unwind flying or zero speed splicers and other shaftless unwind/rewind applications. Unlike other chucks, Tidland’s Raptor Series Air Powered Chucks offer on-machine maintenance and toolless adapter changes from 76.2 mm (3 inch) to 305 mm (12 inch) cores in less than 5 seconds.
The Ultra-Lightweight GX Air Shaft is made with lightweight, high-strength aluminum and an innovative 2-piece expanding element. It delivers unmatched performance in many unwind and rewind applications. Operators’ backs will be saved as this shaft is one of the leading ergonomic solutions for converting applications and has helped many converters reduce or eliminate workers’ compensation claims due to overexertion and heavy lifting.
GX shafts are available to suit a large variety of core sizes and are part of Tidland’s complete line of ergonomic solutions for converters, which includes the ever-popular Force5 Air Chuck and Ultrashaft Carbon Fiber Air Shaft.
The NimCor Roll Restorer quickly turns seemingly unusable stock back into profitable inventory by helping to salvage virtually any roll with a crushed or damaged core. The Roll Restorer can also be used to install shafts while restoring damaged rolls.
Choose from Two Models:
Standard Model: 50.8 mm to 152.4 mm Core ID
Heavy Duty Model: 50.8 mm to 304.8 mm Core ID (forklift mountable)
